Minimum effort. Maximum output.

Processing Systems

Our automated processing systems are designed to improve efficiency across a wide range of laboratory settings. Whether for smaller labs or doctor’s offices with moderate throughput or large-scale facilities with high processing demands, our MAX systems offer a suitable solution for processing the large allergen panel of ALEX³.

Requiring only minimal training of just a few hours and a few minutes of hands-on time per run, the systems can be quickly integrated into daily routines. Automation ensures that personnel are not tied up by routine procedures, allowing them to focus on patients or other tasks. By minimising manual steps and the potential for human error, the MAX systems support efficient performance and optimal use of both time and human resources.

Benefits

  • 9k to 45k results per day
  • 30 to 150 patients per day
  • No tied up personnel - systems run on their own
  • Time to focus on patients & other tasks
  • Little ressources needed for training (a few hours)
Minimise space. Maximise results.

Experience the power of automated high-throughput testing in a footprint as small as ~2–3 m² with the MAX 9k and MAX 45k. Enjoy up to 75 % more free space compared to other systems allowing your lab to expand capabilities and support future growth – while benefiting from 3 times more results at the same time. Plus, the MAX systems offer far less weight and require far less fridge space for reagents, making them easier to install, maintain, and integrate into your existing workflow.

MADx-Hardware_FEB22-6804_A4

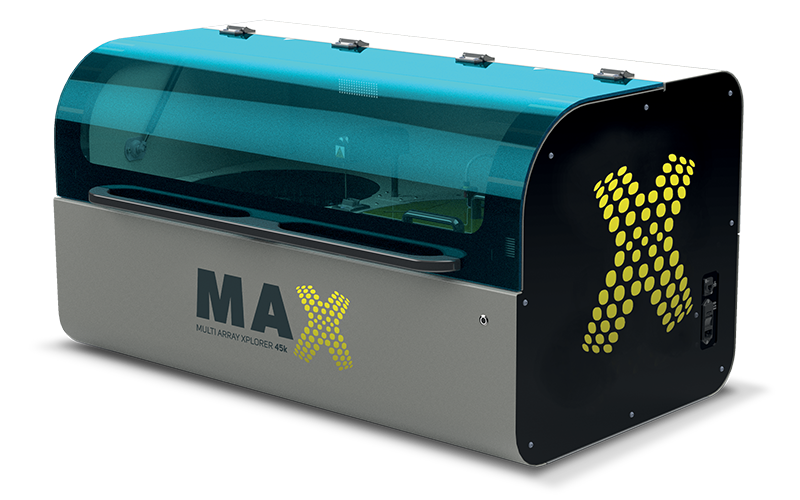

MAX 45k: Automatic processing

Fully automated batch analyser capable of processing 50 samples in one run. A benchtop device for laboratories with high through-put.

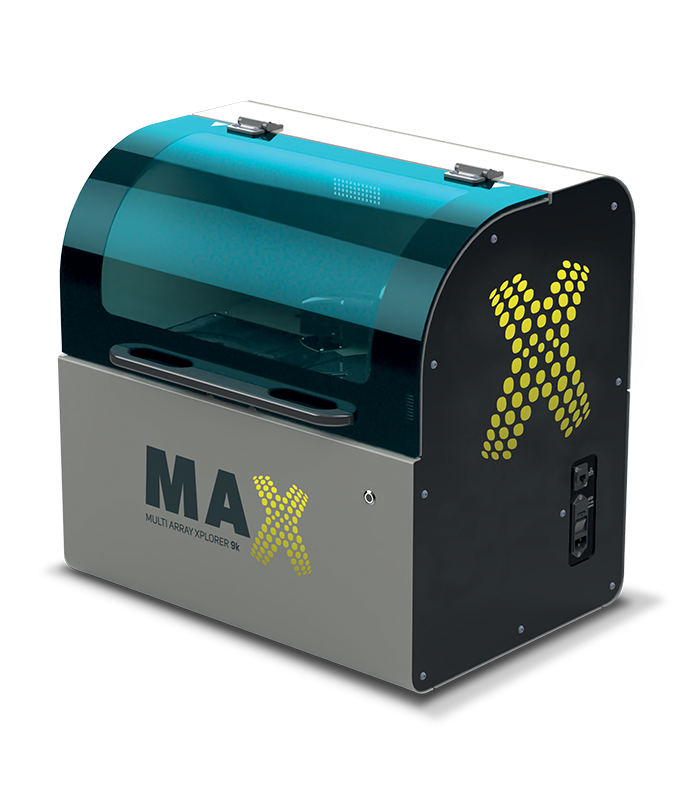

MAX 9k: Automatic processing

Fully automated batch analyser capable of processing 10 samples in one run. A smaller benchtop device for laboratories with medium through-put.

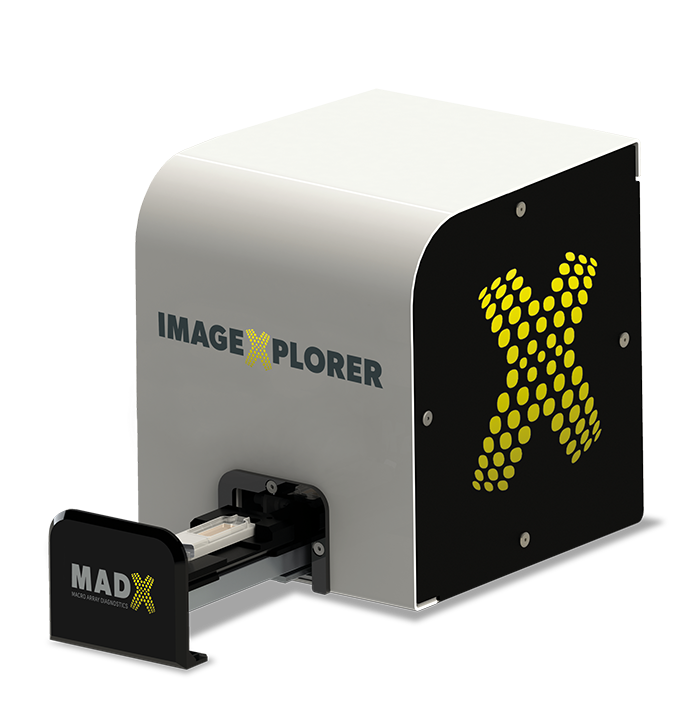

ImageXplorer: Manual processing

A cost-effective system with very low footprint. Suitable for little lab space with a lower through-put.

Less water. Less waste.

Experience a new standard in water efficiency with MAX systems. Consuming just 10 litres a day – far below comparable systems that use 40 to 50 litres – MAX 45k drastically reduces water usage, minimises costs and waste, and lowers energy costs for water purification.

  • Save 75% lab space
  • 3x more results at the same time
  • Less fridge space
  • Easy installation (only 40kg/100kg)

Less power consumption. Less costs.

In every lab, efficiency matters – not just in workflow, but in energy use. MAX systems are designed to deliver reliable, high-performance testing while minimising power consumption. By choosing MAX, your lab can significantly reduce energy costs. Less power draw, lower standby consumption, and intelligent operation combine to make a real difference. Whether your lab serves dozens or thousands of patients, MAX systems adapt to your needs while keeping energy use and costs under control.

  • Less costs (purchase & purification)
  • Less waste
  • No heavy lifting
  • Less storage space needed
  • Sustainable workflow

Performance

MAX 45k
  • Samples per manual run: 50
  • Assay runs per day: 3
  • Max number of results/day: 45,000
  • Total assay time: approx. 4 hours
  • Hands on time: approx. 20 minutes
  • Visual result control time: up to 15 minutes
MAX 9k
  • Samples per manual run: 10
  • Assay runs per day: 3
  • Max number of results/day: 9,000
  • Total assay time: approx. 3.5 hours
  • Hands on time: approx. 10 minutes
  • Visual result control time: approx. 5 minutes
ImageXplorer
  • Samples per manual run: 1-48
  • Assay runs per day: 2
  • Max number of results/day: 28,000
  • Total assay time: approx. 4.5 hours
  • Hands on time: approx. 1 hour
  • Visual result control time: included in hands on time

Specifications

MAX 45k
  • Net weight: approx. 100 kg
  • Width: 115 cm
  • Depth: 65 cm
  • Height: 60 cm
  • Power connection: 100-240 V, 50/60 Hz (standard)
  • Required sample volume: 400 µl (standard tube), 200 µl (low volume)
MAX 9k
  • Net weight: approx. 38 kg
  • Width: 61 cm
  • Depth: 45 cm
  • Height: 60 cm
  • Power connection: 100-240 V, 50/60 Hz (standard)
  • Required sample volume: 400 µl (standard tube), 200 µl (low volume)
ImageXplorer
  • Net weight: approx. 2.5 kg
  • Width: < 0.5 m
  • Depth: < 0.5 m
  • Height: < 0.5 m
  • Power connection: supply through USB port
  • Required sample volume: 100 µl

General benefits

Real-time data analysis

Our products and services continuously exchange and analyse data. This cloud-based solution ensures seamless connectivity between all building blocks, driving constant improvement.

Ease of use

The MADx processing systems are characterised through their easy handling. After a short training period, MADx systems and software can be operated easily.

Molecular specificity

MADx offers the widest panel of molecular allergens (218) on one array. This is unique to our allergy test and increases the specificity compared to the exclusive use of allergen extracts.
background-image
Everything you need to know
important material
Product Flyer MAX Systems PDF
Product Flyer ImageXplorer PDF
All documents
ALEX² allergy test assay control
QualityXplorer

The QualityXplorer is a completely new product in the MADx product portfolio to control the performance of the ALEX³ assay procedure. It contains a mixture of antibodies that react with defined allergens on the ALEX³ Allergy Explorer. As an accessory, the QualityXplorer ensures the quality of the assay procedure of ALEX³ over time and serves as an early warning system about MADx system performance .

Instructions for Use

Benefits

  • To ensure the quality of the assay procedure of the ALEX³

  • Fully integrated into RAPTOR Server Analysis Software

  • Easily monitor your system performance over time

Key features

  • Contains a mixture of monoclonal IgE antibodies that react with defined allergens on ALEX³

  • To control the performance of the ALEX³ assay procedure

  • Kit with 8 vials – ready to use
